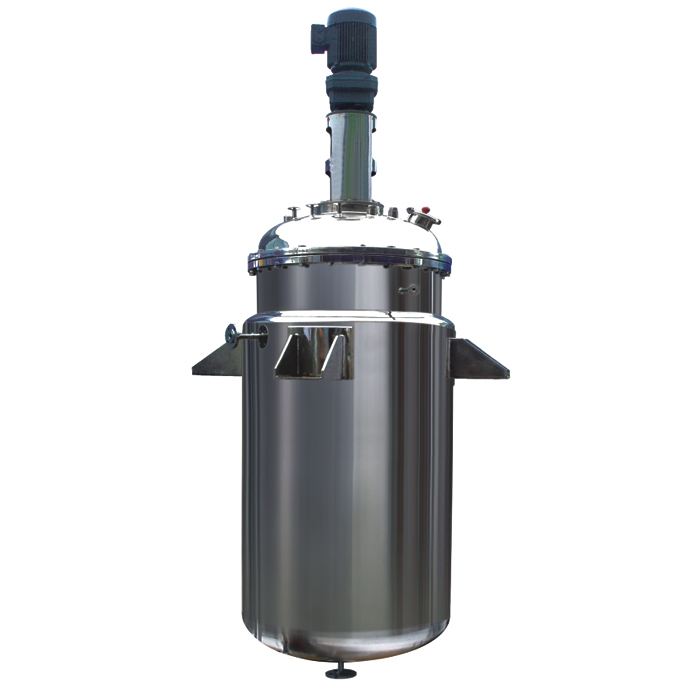

High Pressure Stainless Steel Biological Fermentation Tank
| Payment Type: | T/T |
|---|---|
| Terms of Trade: | FOB |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 60 Days |
| Packaging: | Wooden pallets/ Cartons/Plastic stretch-wrap |
|---|---|
| Brand: | Zhang |
| Transportation: | Ocean |
| Place of Origin: | Jiangsu Wuxi |
| Supply Ability: | 100/Year |
| Certificate: | CE |
| Port: | Shanghai |
Product Description
➤ Fermentation tanks should have suitable scale of diameter to height, whichis generally about 1.7 to 4, the longer the tanks are, the higher the utilization rate of oxygen will be.
➤ Fermentation tanks can bear certain pressure. When fermentation tanks are normally working or being disinfected, there will certain pressure (hydraulic pressure and pneumaticpressure) and temperature in the tanks, so all of their components must have certain strength to bear the pressure.
➤ The stirring and ventilating device in fermentation tanksmake thegas and the liquid fully mixed to make sure that the fermentation broth must dissolve oxygen.
➤ Fermentation tanks should have sufficient cooling area. Inthe process of microbial growth and metabolism, it will release a lot of heat. So in order to control the temperatures on different stages in the fermentation process, it should be equipped with adequate cooling area.
➤ Fermentation tanks must minimize dead cornersto avoid accumulation of dirt, so it can be thoroughly sterilized to avoid bacterial contamination.
➤ The seal of agitators should be tight to minimize leakage.

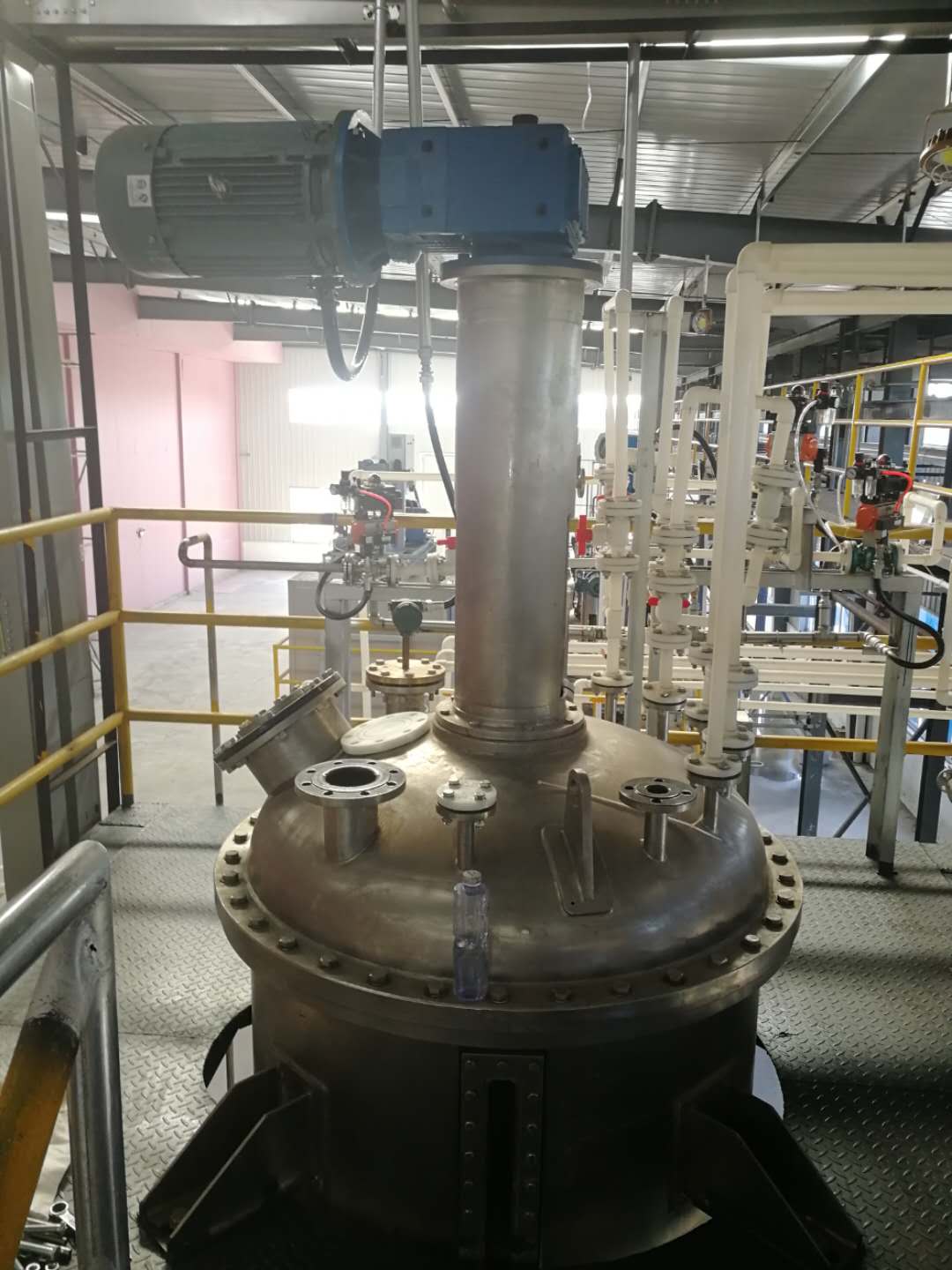

Fermentation Tank Seeding Tank
Application Scope
➤ Food industry:e
➤ Medicine industry: medical ointment, ointment, lotion, cream, various vitamin, etc.
➤ Chemical industry :concerned with product of daily use: shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
➤ Adhesive industry: rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Fermentation tanks usually are equipped with two sets of agitators. The distance between the two sets of agitators (S) is about three times as the diameter of the agitator. For large-scale fermentation tanks or those that have high liquid depth (HL), they can install three or more sets of agitators. It will be better if the agitator at the bottom is close to the exit of air dust, and the distance to the bottom of the tank (C) equals to the diameter of the agitator (Di), but could not be less than 0.8 times of Di, otherwise it will affect the cycle of liquid.
Technical parameters of fermentation tank
| Nominal Volume (m³) | Diameter of internal tank (mm) | Mixing shaft rotational speed (rpm) | Mixing shaft power (kw) |
| 10 | 1800 | 160-260 | 17-22 |
| 15 | 2000 | 160-260 | 20-30 |
| ... | ... | ... | ... |
| 200 | 4600 | 140-240 | 215-360 |
| NominalVolume (m³) | Diameter of internal tank(mm) | Inner tank height (mm) | Mixing shaft rotational speed(rpm) | Mixing shaft power (kw) |
| 0.05 | 300 | 700 | 300-350 | 0.55 |
| 0.1 | 400 | 800 | 300-350 | 0.75-1.1 |
| 0.2 | 500 | 1000 | 280-340 | 0.75-1.5 |
| ... | ... | ... | ... | ... |
| 5.0 | 1400 | 3200 | 180-220 | 7.5-18.5 |
Design / Calculation Software
WUXI ZHANGHUA PHARMACEUTICAL EQUIPMENT CO., LTD.
Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd. was founded in 1976, committed to researching, developing and manufacturing reaction, crystallization, filtration, drying equipment. With the development of the leading technologies for 44 years, our engineering equipment is not only for the pharmaceutical industry, but also for fine chemicals, pesticides, new energy, new materials and other industries. We customize the integrated solution of reaction, crystallization, filtration and drying process equipment for clients.
Our technical team is composed of quality assurance engineers, process engineers, equipment engineers, welding engineers and electrical engineers, and most of them have working experience and engineering project experience for over ten years.
For inflammable, explosive, toxic and corrosive products in pharmaceutical, fine chemical, pesticide and new energy industries, we customize the technology and equipment solution and provide high airtight, high vacuum, fully automatic equipment for clients, to ensure safety, energy conservation and environmental protection of the production process, and compliance with EHS requirements. In addition, we will optimize technology designs for users in order to produce high quality products.
All of our equipment has met FDA and CGMP requirements, ATEX explosion-proof instruction requirements and ASME requirements, and has got PED, MD, LVD certification as well.
The equipment has been exported to several pharmaceutical and chemical enterprises in Asia and Europe, so our engineers in after-sale service department have rich experience abroad.
Wuxi Zhanghua is adhering to the spirit of professionalism, credibility, integrity, innovation and harmony, committed to becoming an advanced international company with high technology and high quality trusted by all the clients. Zhanghua has more than ten intellectual property rights, including patents, software copyright and etc., all of which helps it to keep its excellent sustainability and creativity in the industry. With years of unceasing efforts, Zhanghua has made considerable progress in reaction, crystallization, filtration and drying technology on the equipment, and has established a good image in the field of pharmaceutical and chemical industry.
